TANDY COLOR COMPUTER
MEMORY MAP
I may have gone a little overboard on the Memory Map …
VIDEO
CoCo1 and 2 :: Video Display Generator (VDG MC6847)
CoCo2B :: Video Display Generator with Lowercase (VDG XC80652P/MC6847T1)
CoCo3 :: Graphics Interrupt Memory Enhancement (GIME TCC1014 VC2645QC ACVC 1986: Tequila 1987: Tortilla)
VDG Alphanumeric :: 32×16 Text Screen

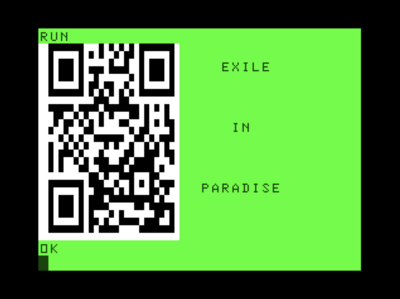

VDG Semigraphics :: SG4 :: SG6 :: SG8 :: SG12 :: SG24 :: ExileQR
VDG Graphics :: CG1 :: RG1 :: CG2 :: RG2 :: CG3 :: RG3 :: CG6 :: RG6
GIME Alphanumeric :: High Resolution Text Screen
GIME Semigraphics :: GIME Semigraphics
GIME Graphics :: High Resolution Graphics Pages :: HGET/HPUT Buffer GIME Modes
GIME Palette
ROM Fonts: VDG ROM Font :: VDG T1 ROM Font :: GIME ROM Font
FPGA UPGRADES
GRAPHICS CARDS
PBJ Workpak and Wordpak II :: MOS 6545 80-column display cartridge - recreated as the Wordpak RS
Wordpak 2+ :: Yamaha V9958 display cartridge
Premier Sprite Board
SuperSprite FM+
VDG RESOURCES
Lowercase - lower case support for Color Computer, Dragon, and MC-10
Frame and Scanline Timing - video frame and scanline timings
6847T1 Font Mystery - with decapping pictures!
VDG Study (July 2022) - pixel-by-pixel comparison of VDG fonts by version
AUDIO
| I/O | DEVICE | INTERFACE | PARTS | TYPE | NOTES |
|---|---|---|---|---|---|
| FF00 - FF03 | PIA0 | MC6821 | MUX | Multiplexer | |
| FF20 - FF23 | PIA1 | MC6821 | DAC | Samples | Six Bit Sound DAC |
| DAC | Samples | One Bit Sound DAC | |||
| SNDEN | Sound Enable Line | ||||
| FF40 - FF41 | Game Master Cartridge (GMC) | TI DCSG (SN76489AN) | Square Waves, Noise | Tandy 1000, SEGA | |
| FF4D | The Voice | Votrax SC-01 | Speech Synthesis | ||
| FF50 - FF54 | MEGA Mini Multi-Pak Interface | Yamaha OPL3 (YMF-262) | FM Synthesis | MMMPI Slot 5, AdLib Gold 1000-compatible | |
| Sound Routing | MMMPI Slot 16 / FFF42 controls which slot's sound is routed to CoCo | ||||
| FF5A - FF5F | CoCoPSG | Yamaha SSG (YM2149) | Square Waves, Noise | GI PSG (AY-3-8910) Compatible, Atari ST | |
| FF60 - FF63 | Symphony-12 / Philharmonic-12 | MC6821 | 4 x GI PSG (AY-3-8912) | Square Waves, Noise | |
| FF6E - FF6F | CoCo MIDI / MIDI Maestro | MC6850 | Serial Data | MIDI 1.0 | |
| FF70 - FF73 | Stereo Composer | MC6821 | 2 x DAC | Samples | 8-bit stereo DACs like Orchestra 90 |
| FF7A - FF7B | Orchestra 90/CC / CoCoDAC-16 | 2 x DAC | Samples | 8-bit stereo DACs | |
| FF7C - FF7E | Speech Sound Cartridge (SSC) | GI PIC (7040-510) | GI Narrator (SP0256-AL2) | Speech Synthesis | |
| GI PSG (AY-3-8913) | Square Waves, Noise | ||||
| FF7F | Multi-Pak Interface (MPI) | PAL/GAL | Controls Cartridge Slot Signals CTS 1-16 and SCS 1-16 | ||
| FF80 - FF84 | Super Voice | Votrax SC-02 (SSI-263) | Speech Synthesis | ||
| FF82 - FF8A | Real Talker | Votrax SC-01 | Speech Synthesis | ||
| FFxx - FFxx | VS-100 | Votrax SC-01 | Speech Synthesis |
